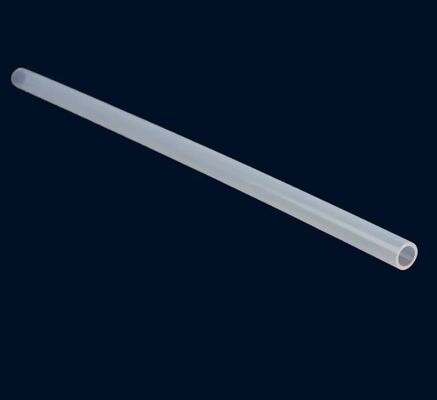

Transparent Medical PTFE Pipe majority in the Medical Care with the Reliable Price

اسم العلامة التجارية:	LC
رقم النموذج:	0.3 مم ~ 2.6 مم
مو:	200
السعر:	negotiable
شروط الدفع:	TT In Advance
القدرة على التوريد:	200000m/day

معلومات تفاصيل

وصف المنتج

معلومات تفاصيل

إصدار الشهادات:

ISO9001

محتوى بتف:

بتف فيرجن 100%

طباعة الصور:

واضح ، مقروء

نقطة الانصهار:

350 درجة مئوية

الميزات الرئيسية:

استقرار درجات الحرارة العالية

التطبيقات:

الأختام، الجوانات، المحامل، البطانات، العزل الكهربائي

لون:

أبيض

مسافة:

10 كم

Packaging Details:

Carton

Supply Ability:

200000m/day

إبراز:

transparent medical PTFE pipe,PTFE pipe for medical care,reliable price PTFE pipe

PTFE pipe for medical care

reliable price PTFE pipe

وصف المنتج

Product Description:

Medical-grade Polytetrafluoroethylene (PTFE) tubing is extruded/dip-coated from high-purity PTFE resin. Featuring ultra-lubricious inner walls, exceptional chemical inertness, and compliance with ISO 10993 and USP Class VI biocompatibility standards, it serves as a core material for interventional devices, fluid transfer systems, and implantable medical applications.

Features:

Ultra-Low Friction: The lowest coefficient of friction (0.04-0.05) among solid materials minimizes insertion resistance and tissue irritation, ideal for neurovascular and cardiovascular interventions.
Superior Chemical Resistance: Resistant to strong acids, alkalis, organic solvents, and contrast media, preventing drug adsorption or material degradation for precise fluid delivery.
Broad Temperature Stability: Operates reliably from -200°C to 260°C, compatible with autoclave, ethylene oxide (EO), and gamma radiation sterilization.
Precision Tolerances: Ultra-thin wall thickness (down to 7.62μm) with inner diameter tolerance of ±0.0003 inches, suitable for microcatheters and guidewire sheaths.
Biocompatibility: Physiologically inert with minimal thrombogenicity and no adverse tissue reactions, meeting short-term contact and implantable medical device standards.

Technical Parameters:

Property	Test Method	Performance
Longitudinal Variation Rate/%	ASTM D 2671	-10~+10
Tensile Strength/MPa	ASTM D 2671	≥19
Tensile Elongation at Break/%	ASTM D 2671	≥200
Dielectric strength/kV/mm	ASTM D 2671	≥26
Apparent Volume Resistivity/Ω·cm	ASTM D 2671	≥10^14

Dimension:

Size	Inner Diameter	Outer Diameter (mm)(S)	Outer Diameter (mm)(T)	Outer Diameter (mm)(L)
30	0.30±0.10	0.80±0.10	0.70±0.10	0.60±0.10
28	0.38±0.10	0.88±0.10	0.78±0.10	0.68±0.10
26	0.46±0.10	0.96±0.10	0.86±0.10	0.76±0.10
24	0.56±0.10	1.16±0.10	1.06±0.10	0.86±0.10
23	0.66±0.10	1.26±0.10	1.16±0.10	0.96±0.10
22	0.71±0.10	1.31±0.10	1.21±0.10	1.01±0.10
21	0.81±0.10	1.41±0. 10	1.31±0.10	1.11±0.10
20	0.86±0.10	1.66±0.10	1.46±0.10	1.16±0.10
19	0.96±0.20	1.76±0.20	1.56±0.20	1.26±0.20
18	1.07±0.20	1.87±0.20	1.67±0.20	1.37±0.20
17	1.19±0.20	1.99±0.20	1.79±0.20	1.49±0.20
16	1.34±0.20	2.14±0.20	1.94±0.20	1.64±0.20
15	1.50±0.20	2.30±0.20	2.10±0.20	1.80±0.20
14	1.68±0.20	2.48±0.20	2. 28±0.20	2.08±0.20
13	1.93±0.20	2.73±0.25	2.53±0.25	2.33±0.20
12	2,16±0.25	2.96±0.25	2.76±0.25	2.56±0.25
11	2.41±0.25	3.21±0.25	3.01±0.25	2. 81±0.25
10	2.69±0.25	3.49±0.25	3.29±0.25	3.09±0.25
