| اسم العلامة التجارية: | WOER |
| رقم النموذج: | 85mm |
| مو: | 1m |
| السعر: | negotiable |
| شروط الدفع: | TT In Advance |
| القدرة على التوريد: | 120000m / Day |

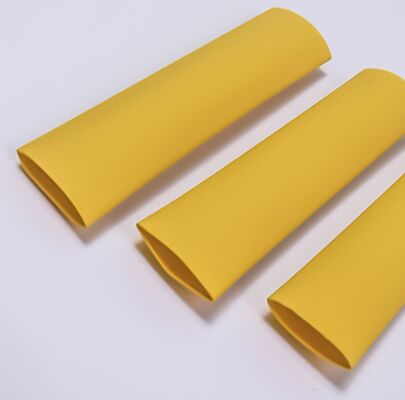

The Busbar Tube is an essential component designed for the protection and insulation of busbars in electrical systems. With a diameter of 85mm, this Busbar Protective tube is engineered to accommodate a wide range of busbar sizes, ensuring a secure and effective enclosure. Its robust design is tailored to enhance the safety and reliability of electrical installations by offering superior insulation and mechanical protection.
One of the standout features of this Busbar Tube is its impressive tensile strength, rated at ≥8.0MPa. This high tensile strength ensures that the tube can withstand significant mechanical stresses and strains during installation and operation, making it a durable choice for demanding electrical environments. The material composition and manufacturing process are optimized to provide long-lasting performance, reducing the risk of damage and the need for frequent replacements.
The Busbar Tube is also fully recovered at 125X5, meaning it has excellent shrinkage and recovery properties. This attribute is critical for achieving a tight and secure fit around the busbar, eliminating gaps and enhancing the overall insulation effectiveness. The precise recovery capability ensures that the tube maintains its protective qualities even after exposure to various environmental factors and thermal cycles, contributing to the longevity of the busbar enclosure.
Safety is paramount in electrical applications, and this Busbar Tube excels with its flame retardant properties. The tube is designed to resist ignition and prevent the spread of flames, providing an added layer of protection in case of electrical faults or fires. This flame retardant characteristic is vital for maintaining the integrity of electrical systems and safeguarding personnel and equipment from fire hazards.
Rated for use at voltages up to 1kV, this Busbar Tube is suitable for a broad spectrum of low to medium voltage applications. Its electrical insulation capabilities ensure that it can effectively isolate busbars, preventing short circuits and electrical leakage. This makes it an indispensable component in the design of safe and efficient busbar enclosures.
In addition to its technical specifications, the Busbar Tube serves as an excellent Busbar Shielding solution. It protects the busbar from environmental contaminants such as dust, moisture, and chemical exposure, which can degrade electrical performance over time. By shielding the busbar, the tube helps maintain optimal conductivity and reduces maintenance requirements, thereby enhancing the overall reliability of electrical installations.
The versatility of this Busbar Tube allows it to be used in various industrial and commercial applications. Whether in power distribution panels, switchgear assemblies, or electrical control systems, it provides a reliable Busbar Enclosure that meets stringent safety and performance standards. Its ease of installation and adaptability to different busbar configurations make it a preferred choice among electrical engineers and technicians.
In summary, the Busbar Tube with an 85mm diameter, tensile strength of ≥8.0MPa, full recovery at 125X5, flame retardant properties, and a rated voltage of 1kV is a superior Busbar Protective product. It offers exceptional mechanical strength, electrical insulation, flame resistance, and environmental shielding, making it an indispensable component for the protection and enclosure of busbars in modern electrical systems. Its ability to provide reliable Busbar Shielding and enclosure solutions ensures enhanced safety, durability, and performance in a wide range of applications.
| Colour | Yellow |
| Application | Electrical Distribution, Switchgear |
| Surface Finish | Tin Plated |
| Retardant | Flame Retardant |
| Processing Service | Moulding, Cutting |
| Insulation | Insulated |
| Diameter | 85mm |
| Fully Recovered | At 125X5 |
| Pressure Range | 0.2~0.6MPa |
| Function | Protect |
The WOER Busbar Tube, available in model numbers ranging from 15mm to 200mm, is a high-quality Busbar Tubing solution originating from China. Certified with ISO9001, this product ensures reliable performance and superior quality for various electrical applications. Designed primarily for electrical distribution and switchgear, the WOER Busbar Tube is an essential component in modern electrical systems, providing excellent Busbar Protective properties that enhance safety and durability.
With a diameter of 85mm and a color of black, the WOER Busbar Tube is engineered to operate efficiently within a wide temperature range of -40°C to 125°C. This makes it suitable for use in diverse environmental conditions, ensuring consistent electrical insulation and protection. The tubing is processed through moulding and cutting services, allowing customization to specific project requirements, which adds versatility to its application in Busbar Electrical installations.
Ideal for use in electrical distribution panels and switchgear assemblies, the WOER Busbar Tube offers excellent Busbar Protective features that prevent electrical faults and enhance system safety. Its robust construction and advanced material properties reduce the risk of short circuits and electrical leakage, making it a preferred choice for engineers and electricians looking for dependable Busbar Electrical insulation solutions.

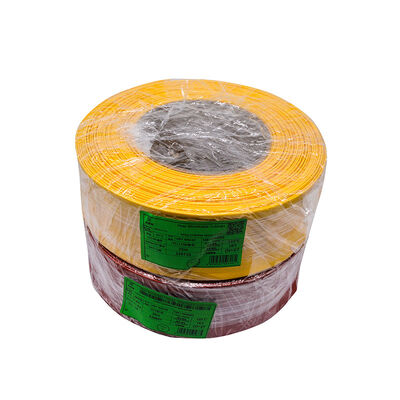

WOER's Busbar Tube is available with a minimum order quantity of just 1 meter, making it accessible for both small-scale and large-scale projects. The packaging details include secure carton packaging to ensure safe delivery. With a supply ability of 100,000 meters per day, WOER can meet substantial demand efficiently.
Customers benefit from a negotiable price structure, with payment terms of TT in advance, and a prompt delivery time of 2 to 4 days. This combination of quality, flexibility, and fast service makes the WOER Busbar Tube an excellent choice for professionals seeking reliable Busbar Protective tubing solutions.
In summary, the WOER Busbar Tube is a highly adaptable product that caters to the needs of electrical distribution and switchgear sectors. Its superior Busbar Electrical insulation performance, coupled with robust protective capabilities, ensures safety and reliability in critical electrical applications.

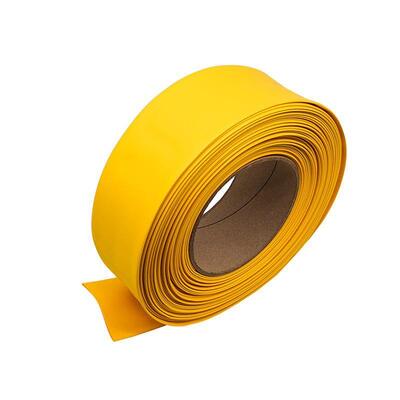

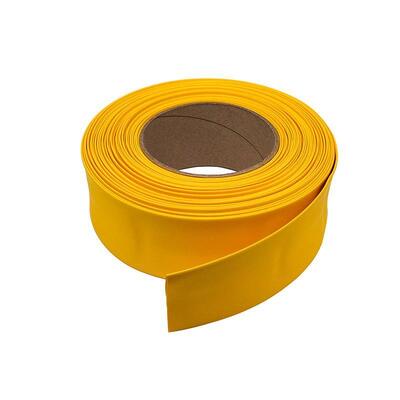

| Product No. | Busbar Width (square)/mm | As Supplied/mm | After Recovered/mm | Standard Package (m/roll) | ||
| ID (Min) | Wall Thickness | ID (Max) | Wall Thickness | |||
| 1kV WMPG 30 | 30 | 31.5±1.0 | 0.50±0.15 | ≤15 | 0.95±0.15 | 50 |
| 1kV WMPG 35 | 35 | 36.5±1.5 | 0.50±0.15 | ≤18 | 1.00±0.15 | 50 |
| 1kV WMPG 40 | 40 | 41.5±1.5 | 0.55±0.15 | ≤20 | 1.00±0.15 | 25 |
| 1kV WMPG 45 | 45 | 41.5±1.5 | 0.55±0.15 | ≤23 | 1.00±0.15 | 25 |
| 1kV WMPG 50 | 50 | 51.0±2.0 | 0.55±0.15 | ≤25 | 1.00±0.15 | 25 |
| 1kV WMPG 60 | 60 | 60.0±3.0 | 0.60±0.20 | ≤30 | 1.30±0.20 | 25 |
| 1kV WMPG 65* | 65 | 65.0±3.0 | 0.60±0.20 | ≤33 | 1.30±0.20 | 25 |
| 1kV WMPG 70 | 70 | 70.0±3.0 | 0.65±0.20 | ≤35 | 1.30±0.20 | 25 |
| 1kV WMPG 75* | 75 | 75.0±3.0 | 0.65±0.20 | ≤38 | 1.30±0.20 | 25 |
| 1kV WMPG 80 | 80/100 | 80.0±3.0 | 0.65±0.20 | ≤40 | 1.46±0.20 | 25 |
| 1kV WMPG 85* | 80/100 | 85.0±3.0 | 0.65±0.20 | ≤43 | 1.46±0.20 | 25 |
| 1kV WMPG 90 | 100 | 90.0±4.0 | 0.65±0.20 | ≤45 | 1.46±0.20 | 25 |
| 1kV WMPG 100 | 100/120 | 100.0±4.0 | 0.65±0.20 | ≤50 | 1.46±0.20 | 25 |
| 1kV WMPG 120 | 150 | 120.0±4.0 | 0.65±0.20 | ≤60 | 1.46±0.20 | 25 |
| 1kV WMPG 150 | 180 | 150.0±4.0 | 0.65±0.20 | ≤75 | 1.46±0.20 | 25 |
| 1kV WMPG 180 | MAX | 180.0±4.0 | 0.65±0.20 | ≤90 | 1.46±0.20 | 25 |
| 1kV WMPG 210* | MAX | 210.0±4.0 | 0.65±0.20 | ≤106 | 1.46±0.20 | 25 |
| 1kV WMPG 230* | MAX | 230.0±4.0 | 0.65 ±0.20 | ≤115 | 1.46±020 | 25 |
| 1kV WMPG 250* | MAX | 250.0±5.0 | 0.65±0.20 | ≤125 | 1.46±0.20 | 25 |
| 1kV WMPG 300* | MAX | 300.0±5.0 | 0.65±0.20 | ≤160 | 1.46±0.20 | 25 |
